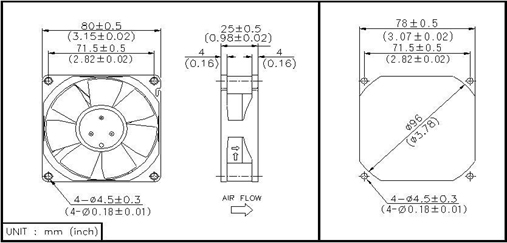

– 80mm square x 25mm frame sizes
– Thermal / Lock protection type
– Enhanced Performance Type impeller design
– Rib type housing
– UL/TUV/cTUVus agency listed(12V/24V)
– RoHs Compliance
– Weight 84g
– Operating Temperature -10℃~70℃
– Ball bearings or Sleeve bearing structure
– Custom added-value options
(i.e. special leadwires, connector installation and etc.)
– Options :
Tachometer output signal or Locked rotor output signal
Themistor speed control, PWM duty control
